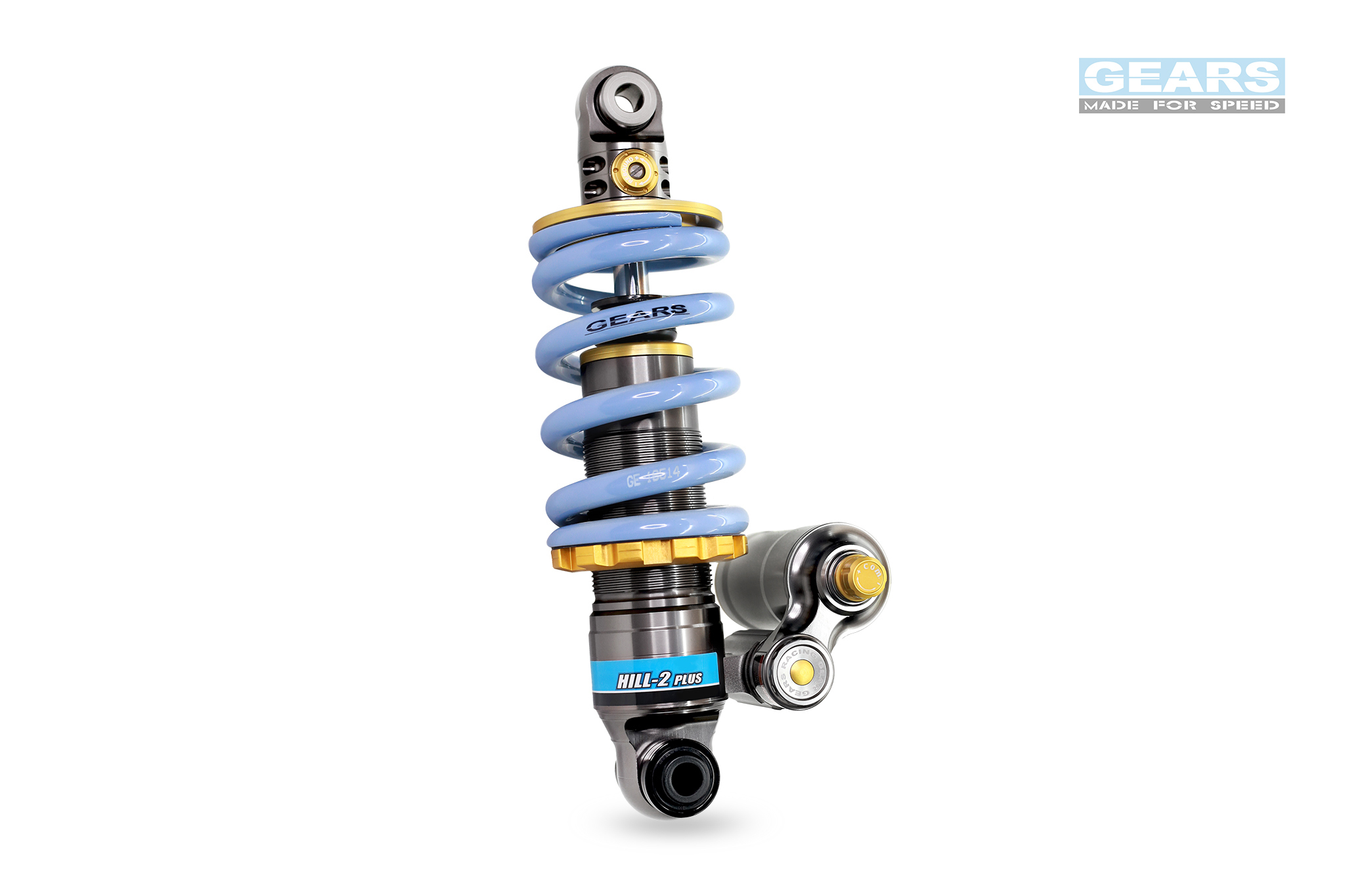

HILL-2 PLUS / H2P

  H-2P is designed for intermediate and high-end riders who have basic knowledge of damper tuning.

It provides two-way adjustment, compression & rebound, and also equips with patented external bi-horizontal-gas-reservoir system.

This system provides more space for fluid and extra surface for heat dissipation that also stabilizes the damping oil temperature.

It maximizes the shock absorber's performance and gives better comfort and safety.



Descripion



● Monotube -Oil -Gas Separation Design

  The shock absorption cylinder adopts the monotube with oil and gas separation design.
Monotube is excellent for heat dissipation, effectively reducing the working temperature of the damping oil.
Large-size piston is the basic platform forwide-range damping force setting, and oil-gas separation is to protect the damping oil from cavitation and to stabilize the damping force.



 Wide Range Piston Valve

  High-sensitivity wide range piston valve, smooth oil-passage design with large piston helps torque variation, so that helps to reduce the simple harmonic motion's damping force at low, medium and high speed shock movement.



 Way Damping Adjustability

  Adjustable damping allows for 15 clicks of reboundand10 clicks of compression, sothis feature gives rideradjustabilitytofinetune the shock according to roador track conditions.



  Adjustable Spring Preload + Pre-Set Gas Pressure

  Spring preload adjustability provides the user the ability to set their own ideal riding preference.
By actuarial built-in high-pressure inert gas that widen the setting of spring compression's range with easy adjustment.



 ● Rebound Adjustability

  15 clicks of reboundadjustabilityallowsthe riderto finelytune theirown idealsuspension damping settings.



● External Bi-Horizontal-Gas-Reservoir

  Patented externalbi-horizontal-gas-reservoir system provided more space for fluid volume and more surface for heat dissipation that also stabilized the damping oil temperature.



 Adjustable Spring Preload

  Spring preload adjustability provides the user the ability to set their own ideal riding preference.



● Height Adjustability*

  Some bikesallow for height adjusting (*Maximum 5mm).



● Warranty

  All EV shocks are covered by 12 month limited warranty since the original date of purchase.
